Mirrors

Your One-Stop Source for Mirror Blanks and Substrates !

㈜쓰리엘시스템은 레이저 품질 수준 미러를 경쟁력 있는 가격으로 제공합니다.
미러는 BK7, UV Fused Silica 또는 ZEORDUR® 로 제작 됩니다.

ㆍ λ /10 surface flatness
ㆍ10-5 laser quality

STANDARD MIRROR BLANKS

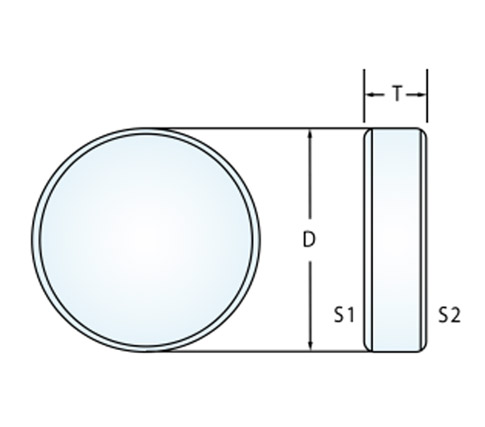

PLANE MIRROR BLANKS

· Substrate : UV Fused Silica, BK7, or Zerodur
· Diameter Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Quality : 10-5 laser quality
· S2 Surface Quality : Commercial polish
· Parallelism : < 3 arc min .
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚

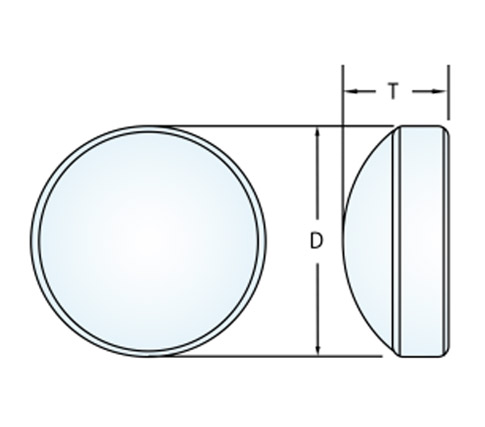

CONVEX SPHERICAL MIRROR BLANKS

· Substrate : UV Fused Silica or BK7
· Diameter Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Flatness : λ /10 @ 633nm
· S2 Surface Quality : 10-5 laser quality
· Focal Length Tolerance : ± 0.5%
· Centration Error : < 3 arc min .
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚

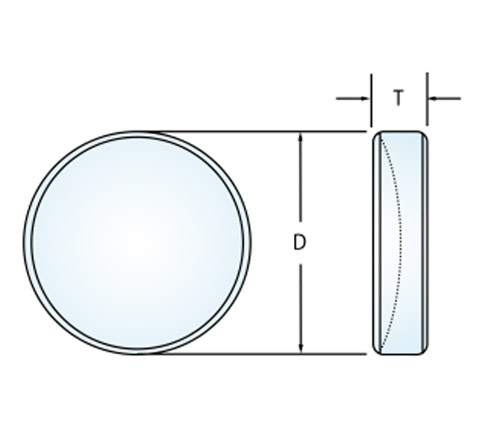

CONCAVE SPHERICAL MIRROR BLANKS

· Substrate : UV Fused Silica or BK7
· Diameter Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Flatness : λ /10 @ 633nm
· S2 Surface Quality : 10-5 laser quality
· Focal Length Tolerance : ± 0.5%
· Centration Error : < 3 arc min .
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚

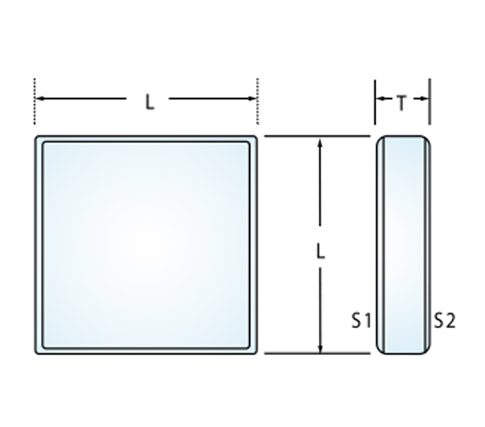

SQUARE MIRROR BLANKS

· Substrate : UV Fused Silica or BK7
· Dimensional Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Quality : 10-5 laser quality
· S2 Surface Quality : Commercial polish
· Parallelism : < 3 arc min.
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚

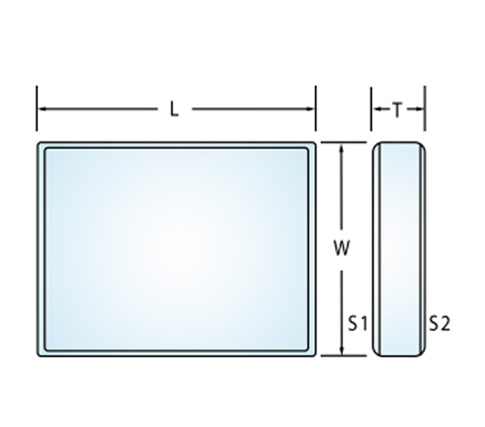

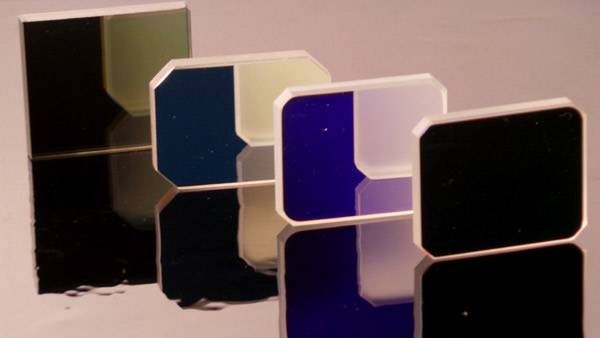

RECTANGULAR MIRROR BLANKS

· Substrate : UV Fused Silica or BK7
· Dimensional Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Quality : 10-5 laser quality
· S2 Surface Quality : Commercial polish
· Parallelism : < 3 arc min.
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚

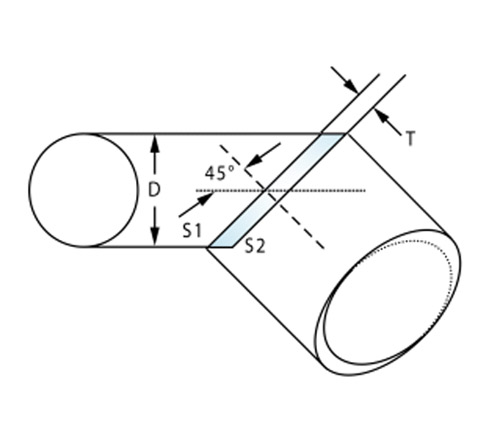

ELLIPTICAL MIRROR BLANKS

· Substrate : UV Fused Silica or BK7
· Diameter Tolerance : +0.0/-0.20 mm
· Thickness Tolerance : ±0.25 mm
· S1 Surface Quality : 10-5 laser quality
· S2 Surface Quality : Commercial polish
· Parallelism : < 3 arc min.
· Clear Aperture : > 85% of diameter
· Edge Bevel : 0.3 mm face width at 45˚
