Optical lens supplier 3L-Systems offers design, processing, and coating services for various types of cylindrical lenses

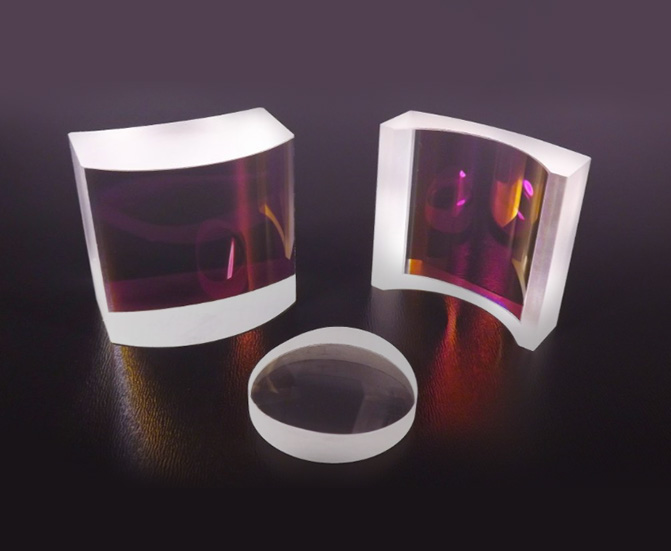

- CYLINDRICAL LENSES
-
Cylindrical lenses are used as laser line generators, for adjusting image height, or for correcting astigmatism in imaging systems.
They can also be manufactured from materials suitable for anti-reflective coating like BK7, UV fused silica, and CaF2.

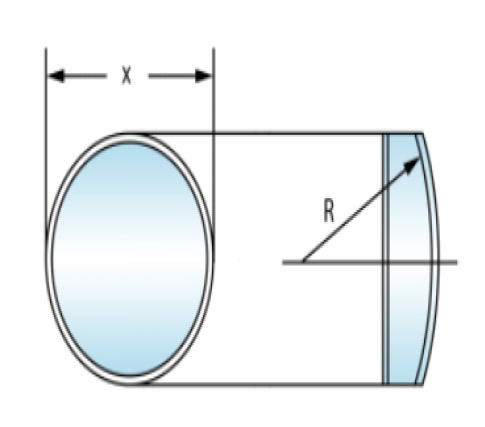

ROUND PLANO-CONVEX CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |
ROUND PLANO-CONCAVE CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

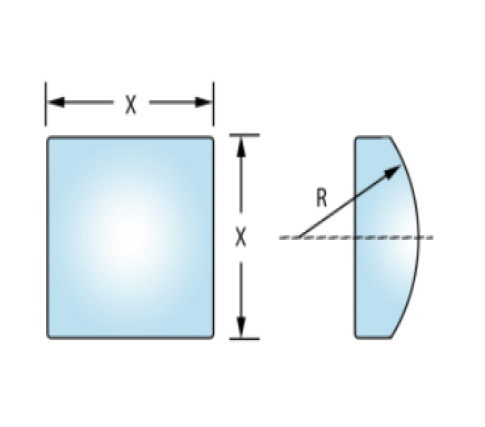

SQUARE PLANO-CONVEX CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

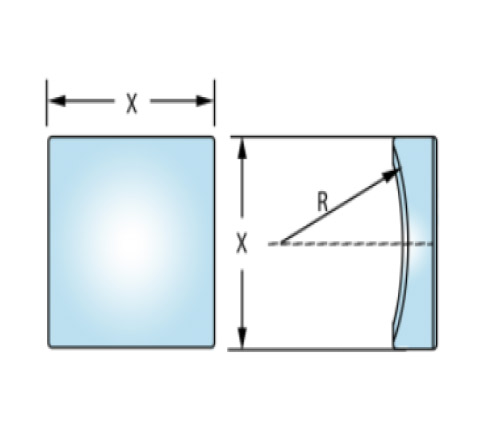

SQUARE PLANO-CONCAVE CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

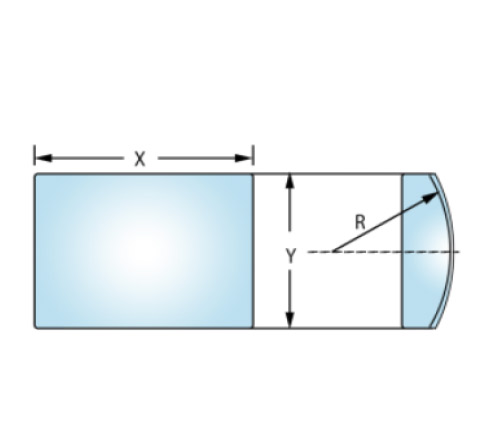

RECTANGULAR PLANO-CONVEX CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |

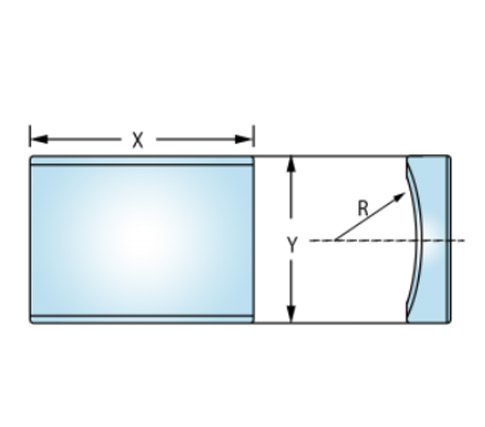

RECTANGULAR PLANO-CONCAVE CYLINDRICAL LENSES
SPEC
| Substrate material | VUV CaF2, UV Fused Silica, BK7 |
|---|---|
| Diameter Tolerance | +0.0/-0.20 mm |
| Thickness Tolerance | ±0.25 mm |
| Surface Irregularity | λ/2 for Y-direction, λ/4 for X-direction @ 633nm |
| Surface Quality | 20-10 laser quality |
| Focal Length Tolerance | ±0.5% |
| Centration Error | < 3 arc min. |
| Clear Aperture | > 85% of diameter |
| Edge Bevel | 0.3mm face width at 45˚ |
